2005 Portable X-ray machine

Portable frequency conversion gas-insulated X-ray machine

This model of unit uauslly with small volume X-ray generator, anode grounding, forced fan cooling, beautiful outlook, proper construction, light weight, convenient carrying, simple operation, and strictly works and rest according to 1:1mode, it can aging automatically, can check exposure parameters, also has high voltage on delaying function for assuring operator’s safety.

Portable Gas-filling Series frequency conversion X-ray machine

A new generation of intelligental portable gas-filling series frewuency conversion X-ray machine which manufactured by Dandong Liaodong Radioactive Instrument Co.,Ltd is the most ideal NDT equipment that broadly used for national industrial, boiler, pressure vessel, ship-building, paper-making, petrochemical industrial, aviation, industrial mechnics and so on. Its volume is small, operation conveniently, works reliable, especially suit for all kinds of open works and can be works matches with power unit. Its control unit also can be cooperated with domestic&import detector.

Technical parameters for Directional portable X-ray machine(ripple ceramic X-ray tube)

Model

Output voltage(KV)

Input
(KW)

Focus spot
(mm)

Beam angle

Max penetration
(mm)

Weight(kg)

Dimension(mm)

Generator

Controller

Generator

Controller

XXG-2005

100-200

2.0

2.0×2.0

40+5°

30

22.5

11

280×280×600

350×290×160

XXGH-2005

100-200

2.0

2.0×2.0

25+5°

27

22.5

11

280×280×600

350×290×160

XXGH-2005

100-200

2.0

2.0×2.0

30+5°

25

22.5

11

280×280×600

350×290×160

XXQ-2005

100-200

2.0

1.5×1.5

40+5°

30

22.5

11

280×280×650

350×290×160

XXH-2005

100-200

2.0

1.0×3.5

25+5°

27

22.5

11

280×280×600

350×290×160

XXH-2005

100-200

2.0

1.0×3.5

30+5°

25

22.5

11

280×280×600

350×290×160

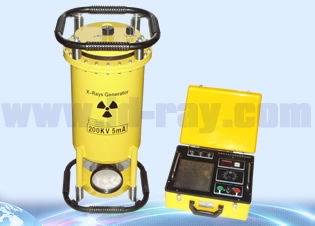

XXG-2005

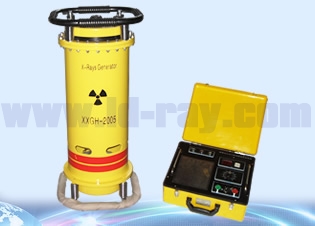

XXGH-2005 flat target

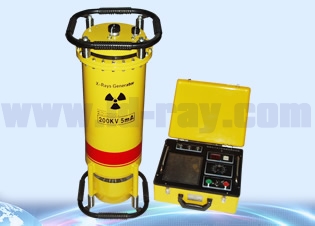

XXGH-2005cone target

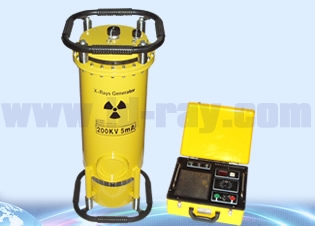

XXQ-2005

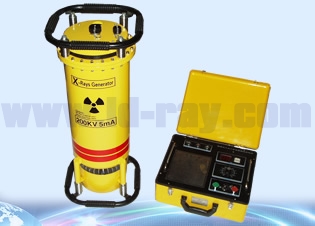

XXH-2005flat target
XXH-2005cone target

Remarks:

Q—directional H—panoramic( flat target, cone target) G—ripple ceramic tube
